Pultruded FRP Grating (I-Bar)
FRP grating assembled from pultruded I- or T-bearing bars and cross rods. Higher glass content and much greater stiffness in the span direction than moulded grating — for longer spans and heavier loads.
- Minimum order
- Project-based; confirmed per quotation.
- Lead time
- Confirmed per quotation.

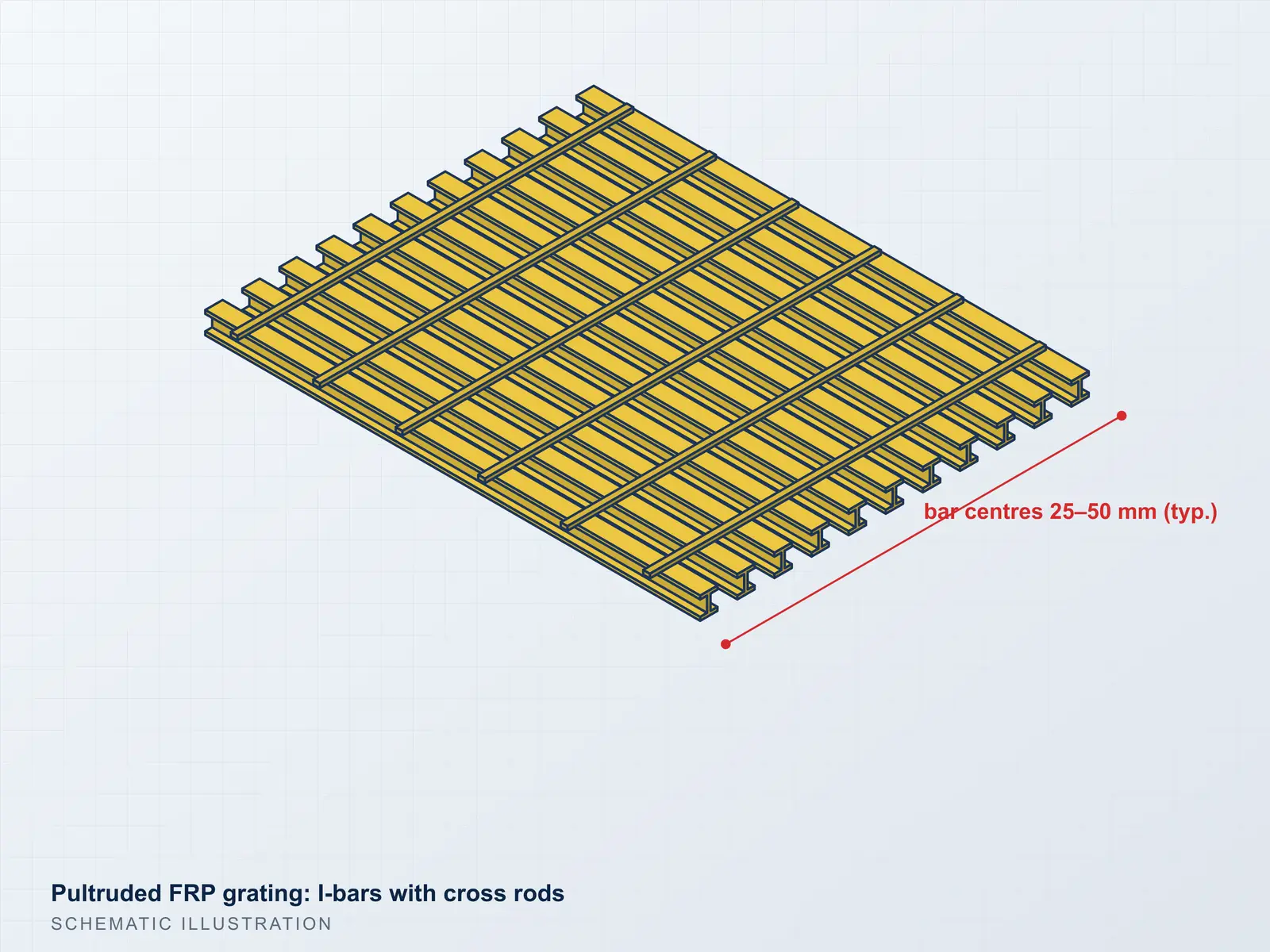

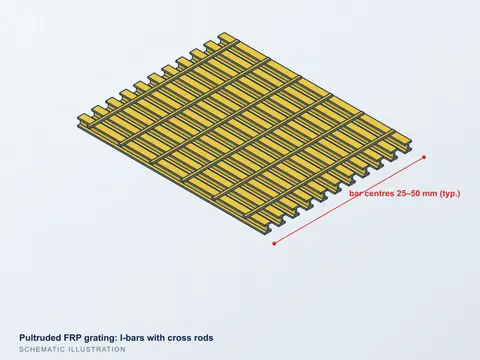

Pultruded grating uses continuous-fibre bearing bars — typically I-sections — locked together by cross rods. Because the fibres run along the bar, stiffness in the span direction is far higher than in moulded grating, so the same depth covers longer clear spans or heavier loads.
It is the choice for platforms with wide support spacing, vehicle-adjacent walkways and long trench covers. The trade-off: load is carried in one direction only, and cut edges need proper sealing.
Bar series and spacing (open area) are selected from the manufacturer’s load tables; we supply the tables for the exact series quoted.
Key specifications
| Construction | Pultruded I- or T-bearing bars joined by cross rods (bonded/mechanical)Source: en.wikipedia.org |
|---|---|
| Bar depths | Series from 25 mm upward (deeper series for longer spans)Source: strongwell.com |
| Load direction | One-way span (bearing bar direction)Source: en.wikipedia.org |
| Resins | Isophthalic polyester, vinyl ester; fire-retardant optionsSource: en.wikipedia.org |
| Surface | Gritted top surface or solid-top plateSource: strongwell.com |
| Load data | Manufacturer load/deflection tables per series and spanSource: strongwell.com |
Typical, configurable ranges compiled from published manufacturer data. Final values are confirmed per order in the quotation and supporting test documents.
Materials
Pultruded glass-fibre bars with high fibre content in polyester or vinyl ester resin; cross rods pultruded or bonded.
Dimensions & formats
Panel widths and lengths per series; cut to size to drawings.
Options & customisation
- Solid top or gritted
- Cut to size, edge sealing
- Colour to MOQ
Applications
- Platforms with wide support spacing
- Long trench and channel covers
- Heavier maintenance walkways
- Offshore and marine decks
- Cooling tower decks
Ordering information
Minimum order
Project-based; confirmed per quotation.
Lead time
Confirmed per quotation.
Packaging
Palletised panels with edge protection.
Loading & shipping
Long panels may require 40′ containers; loading plan provided.
Technical documentation
- Load / deflection tables for the quoted seriesAvailable on request with your RFQ
- Resin data and chemical-resistance guideAvailable on request with your RFQ
- Fire test reportWhere held for the exact product
Frequently asked questions
When is pultruded better than moulded?
When the span between supports is long or the load is high and a one-way span is acceptable. For short spans and two-way load distribution, moulded grating is simpler and cheaper.
Can pultruded grating be walked on without grit?
Plain bars are slippery when wet or oily; we recommend a gritted surface for walkways.
Do you supply the support structure?
Yes — FRP profiles, clips and fasteners can be supplied together; structural design stays with your engineer.
