PVC Line Set Cover Systems
UV- and temperature-resistant PVC duct systems that conceal refrigerant lines, cables and condensate hoses between indoor and outdoor units — straight ducts, elbows, tees, wall inlets and end caps in 80/100/130/150 series.
- Minimum order
- Mixed pallet by series; container orders.
- Lead time
- Confirmed per quotation.
A line set cover turns a bundle of insulated copper, cable and drain hose into a neat, protected run on the façade. For installers it is a finishing product sold with every split system or heat-pump install; for wholesalers it is a high-turnover, multi-SKU range where consistency of fit between batches matters more than anything else.

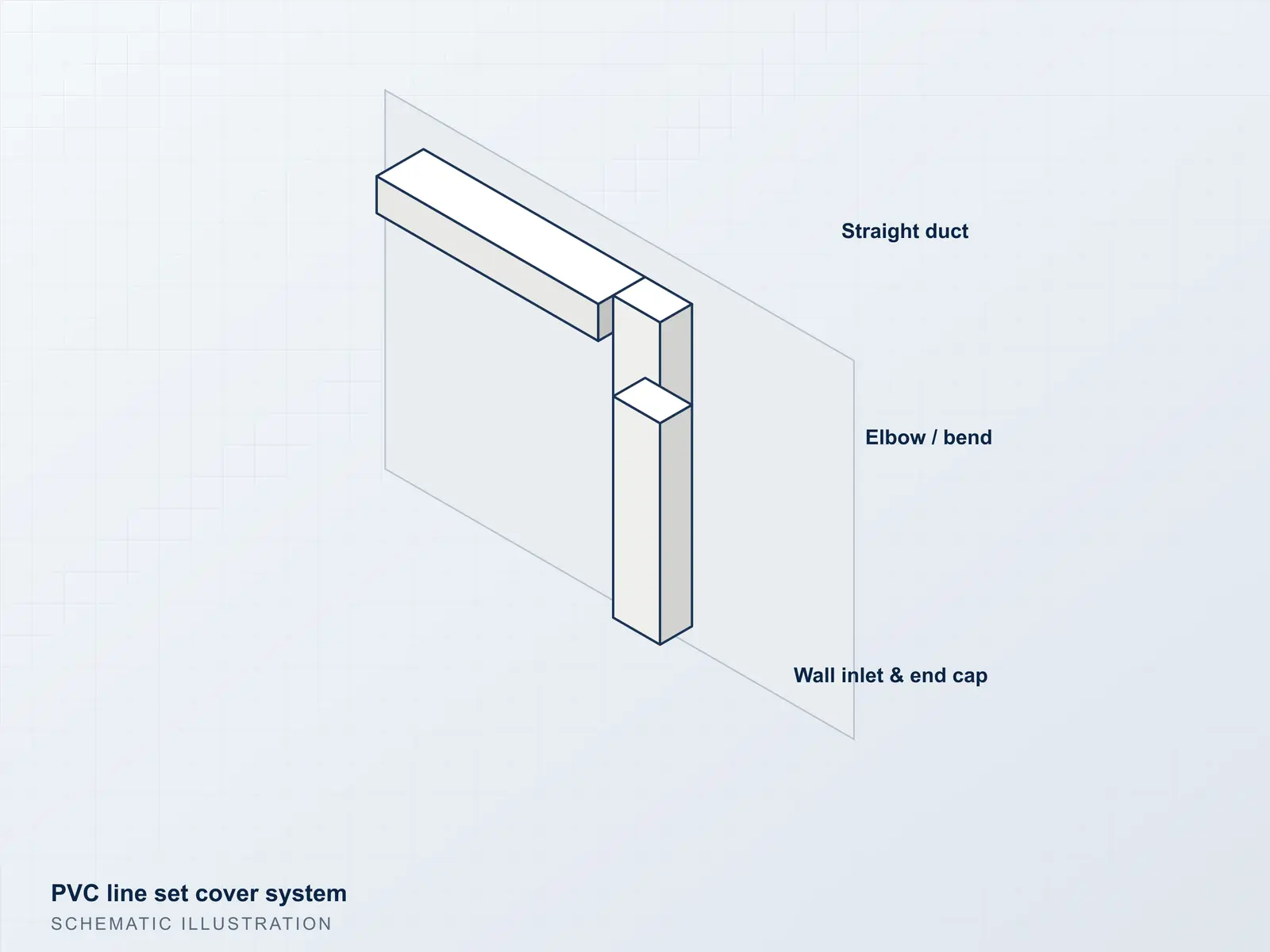

Systems come in size series matched to the line-set bundle, each with straight ducts and a full set of snap-on fittings. We supply complete series in white or ivory, with retail cards or bulk cartons, and check fitting-to-duct tolerance on every batch.
Wall penetrations. The system includes wall inlet covers and penetration sleeves that finish the core-drilled hole where the line set enters the building. They are cosmetic and weather covers — air-tightness, fire-stopping and vapour control at the penetration remain part of the building design.
Key specifications
| Size series | 80, 100, 130, 150 series (common)Source: superaircool.com |
|---|---|
| Components | Straight duct, elbows, tees, wall inlet cover, end cap, couplersSource: superaircool.com |
| Material | UV- and temperature-resistant PVCSource: superaircool.com |
| Service temperature (published) | −40 to 140 °F (≈ −40 to 60 °C)Source: superaircool.com |
| Installation | Snap-on modular; no special toolsSource: superaircool.com |
Typical, configurable ranges compiled from published manufacturer data. Final values are confirmed per order in the quotation and supporting test documents.
Materials
UV-stabilised PVC.
Dimensions & formats
Per series; straight duct lengths per range.
Options & customisation
- Colour (white, ivory, grey)
- Retail cards with your brand
- Assorted fittings boxes
Applications
- Split AC and heat-pump line sets
- Condensate hose runs
- External cable routing
- Multi-split façades
Ordering information
Minimum order
Mixed pallet by series; container orders.
Lead time
Confirmed per quotation.
Packaging
Bulk cartons or retail packs.
Loading & shipping
Light but voluminous; plan by volume.
Technical documentation
- Series drawings and fitting listAvailable on request with your RFQ
- Batch fit-check recordAvailable on request with your RFQ
Frequently asked questions
Which series do I need?
Choose by the diameter of the insulated line-set bundle plus cable and drain; our series table lists the internal cross-section.
Will it discolour outdoors?
UV-stabilised PVC is formulated for outdoor use; colour stability varies by grade — ask for the formulation data.
Can fittings from different batches be mixed?
Yes, that is why we check fitting-to-duct tolerance on each batch.
Does the wall inlet cover seal the penetration?
It covers and protects the opening; air-tightness and any fire-stopping must be provided by the appropriate sealing products specified for the wall.
