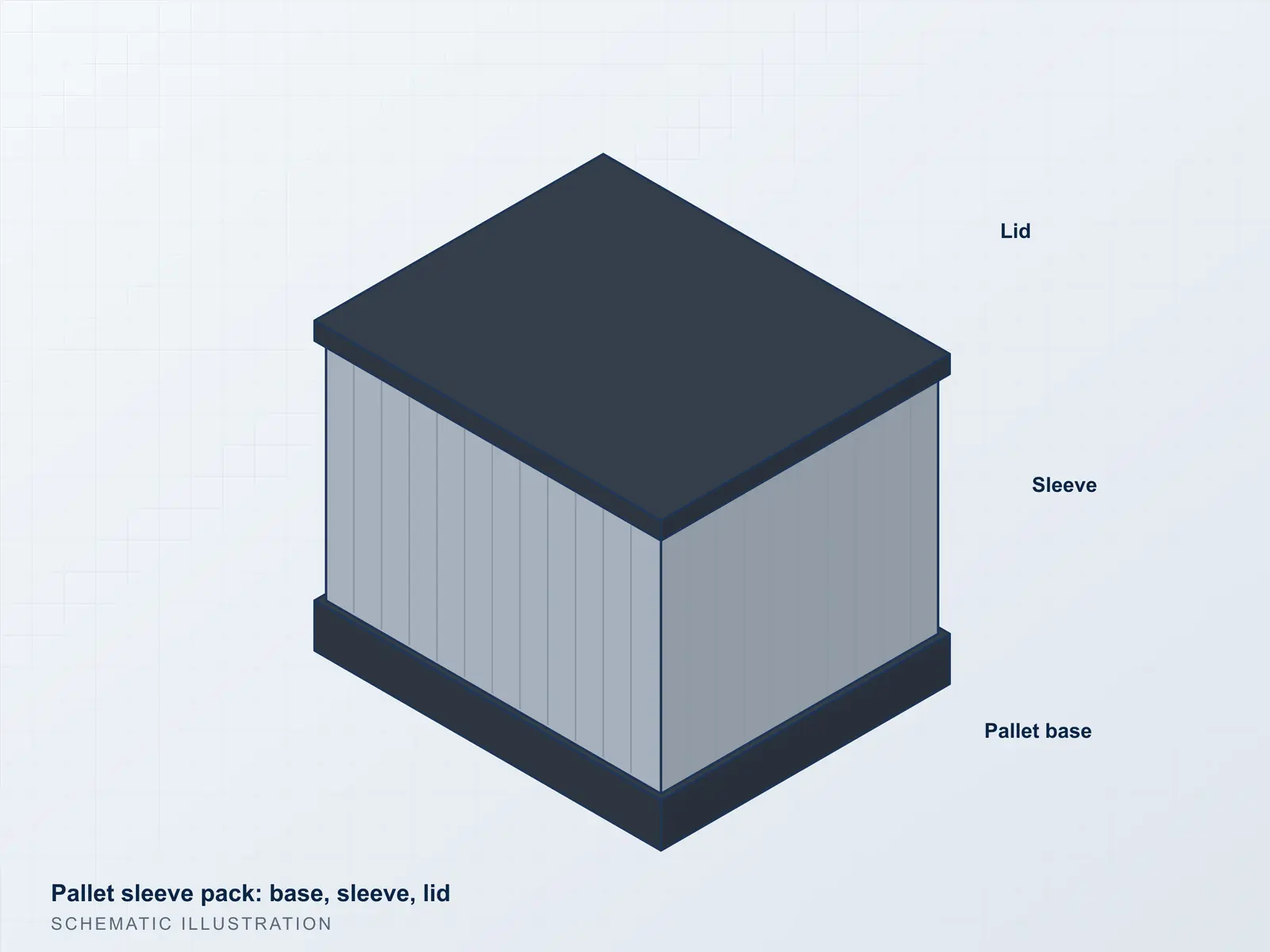

Pallet Sleeve Packs (Pallet + Sleeve + Lid)
Three-part returnable packs — plastic pallet base, collapsible sleeve and lid — on 1200 × 800 or 1200 × 1000 footprints. Sleeves fold flat for the return trip.
- Minimum order
- Typically from a few hundred sets; confirmed per quotation.
- Lead time
- Confirmed per quotation.
Sleeve packs are the flexible alternative to rigid pallet boxes: the pallet base and lid are moulded, and the sleeve — often a twin-wall or honeycomb polypropylene board — folds flat. Heights can be increased by stacking sleeves, and the empty pack returns at a fraction of its filled volume.
They are used for bulky or irregular parts in automotive and white-goods supply chains, and increasingly to replace one-way cardboard gaylords in industrial flows.
We configure base, sleeve height, lid and door cut-outs to your parts and handling, and supply dividers and inserts in the same shipment.
Replacement sleeves and lids. Bases usually outlast sleeves. Where the pallet base and lid are still serviceable, replacement sleeves can be made to the existing footprint and locking features, so damaged packs return to the loop without buying complete sets. Send a sample or drawing of the base interface.
Key specifications
| Components | Pallet base, collapsible sleeve, lidSource: polyflute.com |
|---|---|
| Footprints | 1200 × 800 and 1200 × 1000 mm (European pallet sizes)Source: logisticpackaging.com |
| Sleeve material | PP twin-wall or honeycomb boardSource: polyflute.com |
| Return | Sleeve folds flat; base and lid nest/stackSource: polyflute.com |
| Options | Access doors in sleeve, dividers, inserts, label pockets |
Typical, configurable ranges compiled from published manufacturer data. Final values are confirmed per order in the quotation and supporting test documents.
Materials
Injection-moulded PP/HDPE base and lid; PP board sleeve.
Dimensions & formats
Sleeve heights per order; stacked sleeves for tall packs.
Options & customisation
- Sleeve printing and colour
- Door cut-outs and dividers
- RFID / label pockets
Applications
- Automotive bulky parts (bumpers, trims, seats)
- White-goods components
- Replacing corrugated gaylords
- Plastic and rubber parts supply
- Inter-plant transfers
Ordering information
Minimum order
Typically from a few hundred sets; confirmed per quotation.
Lead time
Confirmed per quotation.
Packaging
Sleeves folded and palletised; bases/lids stacked.
Loading & shipping
High density when folded.
Under the EU PPWR, conformity-assessment and declaration duties apply to packaging placed on the EU market from 12 August 2026, and reusable packaging must operate within a reuse system. We supply material and substance declarations from the manufacturer; operating the reuse system and the declaration as “manufacturer” under PPWR remain with the party placing the packaging on the market.
Technical documentation
- Technical data sheetAvailable on request with your RFQ
- Material and substance declarationsFrom the manufacturer
Frequently asked questions
Sleeve pack or rigid FLC?
Sleeve packs are lighter and more flexible in height; rigid FLCs are sturdier for heavy parts and automated handling.
Can the sleeve be printed?
Yes, with logo and handling instructions, subject to MOQ.
Are lids interchangeable with our current system?
Only if footprints and locking features match; send a sample or drawing.
Can you supply sleeves only, for our existing bases?
Yes, if base footprint and locking features are confirmed from a sample or drawing; sleeves are then made to that interface.
