Split Raised-Floor Brush Grommets
Brush-sealed cable grommets for raised-floor tile cut-outs. Split frames fit around cables that are already installed, so openings can be sealed during live retrofits. Rectangular and round formats, sized to the cut-out.
- Minimum order
- Standard sizes from trial cartons; custom frames per quotation (tooling may apply).
- Lead time
- Confirmed per quotation.

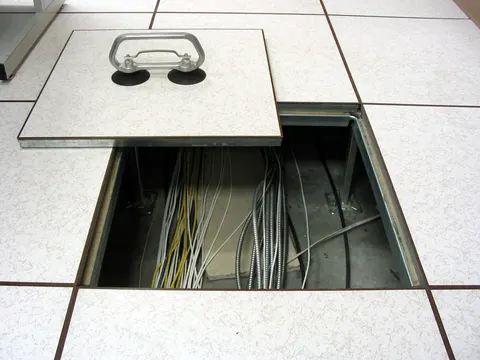

Every cable cut-out in a raised-floor tile is a hole in the cold-air plenum. Uncovered, it lets supply air escape where it does nothing useful; a brush grommet closes the opening while cables pass through its bristles. The US DOE/LBNL guidance on data-centre air management lists sealing floor openings as a basic measure.

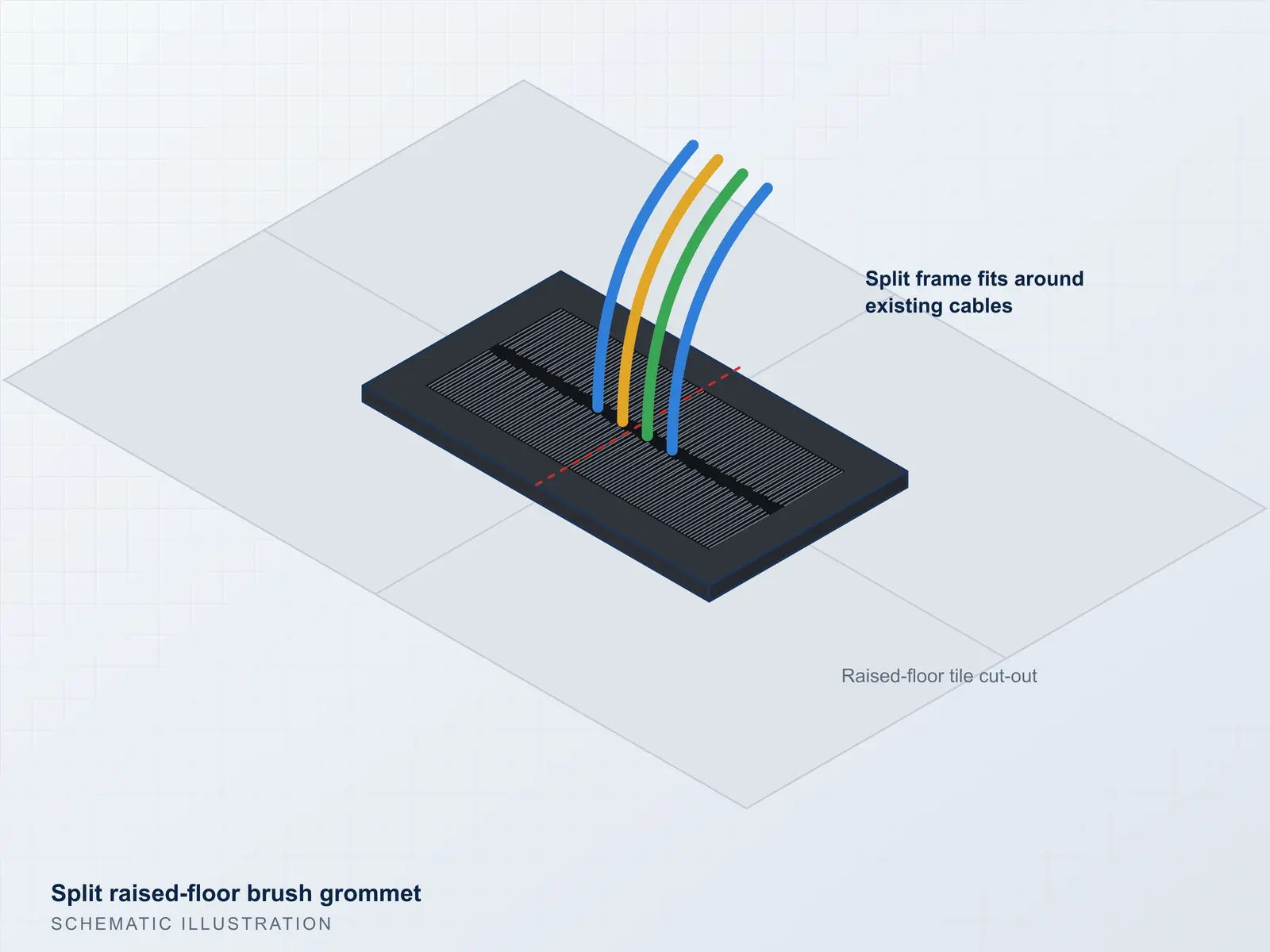

Split grommets are the retrofit version: the frame opens or comes in two halves, so it can be installed around live cabling without disconnecting anything. Solid (one-piece) grommets suit new cut-outs before cabling.
Buyers compare grommets on four points: cut-out size and shape (the grommet must cover the existing hole), usable cable opening (the brushed area available to cables), tile thickness / mounting (surface-mounted flange or recessed), and material (frame plastic or metal; plastics from UL94 V-0 rated grades). Use our measuring guide before requesting a quote.
We supply standard rectangular and round sizes plus custom frames for non-standard cut-outs, and bundle them with blanking panels and gap seals for full sealing packages.
Key specifications
| Formats | Split (retrofit) and solid; rectangular and roundSource: chatsworth.com |
|---|---|
| Split rectangular example | 279 × 210 × 41 mm (11 × 8.25 × 1.625 in) — one common market formatSource: cdw.com |
| Round example | 4 in round grommet (other diameters available)Source: geistglobal.com |
| Key dimension | Usable cable opening vs. total cut-out size — specify bothSource: datacenterstore.com |
| Seal | Double-row or single-row brush closureSource: chatsworth.com |
| Frame materials | Plastic (UL94 V-0 rated grades available) or steelMaterial rating ≠ UL-listed product |
Typical, configurable ranges compiled from published manufacturer data. Final values are confirmed per order in the quotation and supporting test documents.
Materials
Injection-moulded plastic frames (flame-retardant grades) or powder-coated steel; synthetic brush strips; optional foam gasket; edge protector strips for rough tile edges.
Dimensions & formats
Standard rectangular and round sizes; custom frames to the measured cut-out (length × width, corner radius, tile thickness).
Options & customisation
- Custom frame sizes for legacy cut-outs
- Colour, logo, distributor packaging
- Kits with edge protection
Applications
- Raised-floor cable cut-outs under racks
- Retrofits in live data halls
- Cut-outs at PDUs and CRAH units
- Comms rooms with underfloor supply air
- Sealing packages with blanking panels and gap seals
Ordering information
Minimum order
Standard sizes from trial cartons; custom frames per quotation (tooling may apply).
Lead time
Confirmed per quotation.
Packaging
Boxed individually or bulk; kits per rack row on request.
Loading & shipping
Light — LCL or air freight; ship together with blanking panels.
Plastic parts can be made from UL94 V-0 rated materials; that is material data, not a UL listing of the finished grommet. We do not claim energy savings for any single sealing product — air management works as a combination of measures.
Technical documentation
- Dimension drawing (cut-out, usable opening, flange)Available on request with your RFQ
- Frame and brush material dataIncl. UL94 grade of the resin where applicable
- Fit check against your tile sampleOn request
Frequently asked questions
Split or solid grommet?
Split for existing cut-outs with cables already in place; solid for new cut-outs before cabling.
Our cut-outs are non-standard — can you match them?
Yes. Measure length, width, corner radius and tile thickness (see the measuring guide); custom frames are made to cover the hole with the required usable opening.
Is the grommet UL listed?
We state material flammability data (e.g. UL94 V-0 resin) where available. We do not describe a grommet as UL listed unless the finished product carries that listing.
