FRP Cable Trays & Cable Ladders
Ladder, perforated and solid-bottom FRP cable trays for corrosive and non-conductive cable routes. Widths 150–900 mm, 3 m lengths, tested to NEMA FG-1 methods.
- Minimum order
- Project-based.
- Lead time
- Confirmed per quotation.
FRP cable trays replace galvanised or stainless steel where corrosion or electrical isolation matters: chemical and fertiliser plants, water treatment, desalination, offshore, coastal substations and solar plants in aggressive environments.

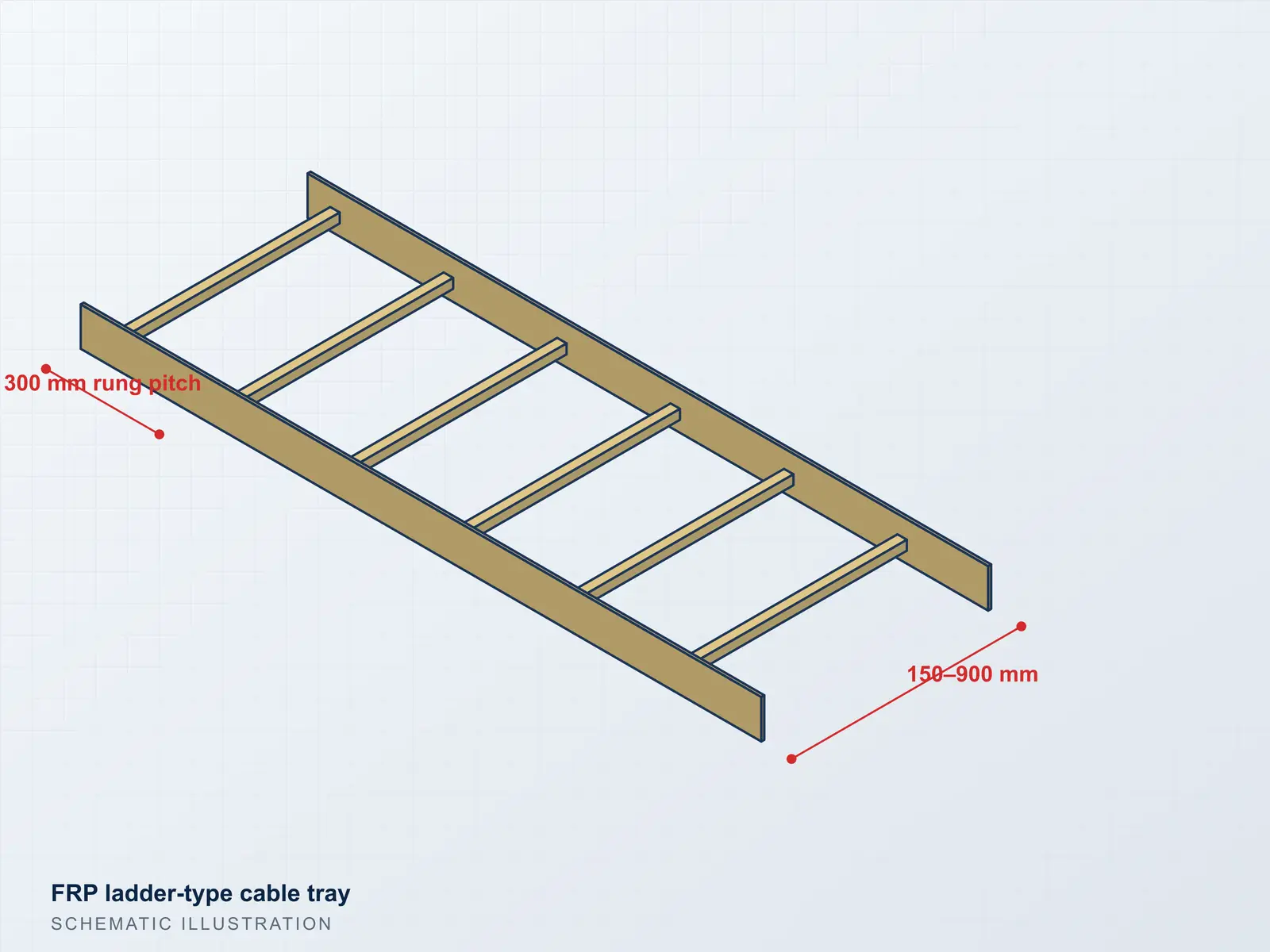

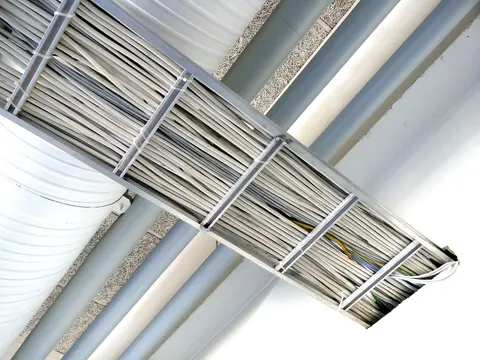

A typical ladder system uses side rails around 102 mm high with 25 × 25 mm rungs at 300 mm pitch in 3 m lengths, and published specifications give working loads at 1.5 m support span in the region of 30 kg/m for 150 mm trays up to 90 kg/m for 600 mm trays. Always design with the load/span table of the exact system — rail geometry, laminate thickness and resin vary.
We supply straight lengths, bends, tees, reducers, covers, splice plates and FRP or stainless hardware as one package.
Key specifications
| Types | Ladder, perforated (ventilated), solid-bottom; covers optionalSource: fibrograts.com |
|---|---|
| Widths | 150, 300, 450, 600 mm (750 and 900 mm available)Source: fibrograts.com |
| Side-rail height (example) | ≈ 102 mmSource: bhel.com |
| Rungs (ladder type, example) | 25 × 25 mm at 300 mm pitch; standard length 3,000 mmSource: bhel.com |
| Working load at 1.5 m span (example spec) | 150 mm: 30 kg/m · 300 mm: 60 kg/m · 450 mm: 75 kg/m · 600 mm: 90 kg/mSource: bhel.com |
| Test methods referenced | NEMA FG-1; ASTM D635 (burning rate); ASTM D2863 (oxygen index)Source: bhel.com |
Typical, configurable ranges compiled from published manufacturer data. Final values are confirmed per order in the quotation and supporting test documents.
Materials

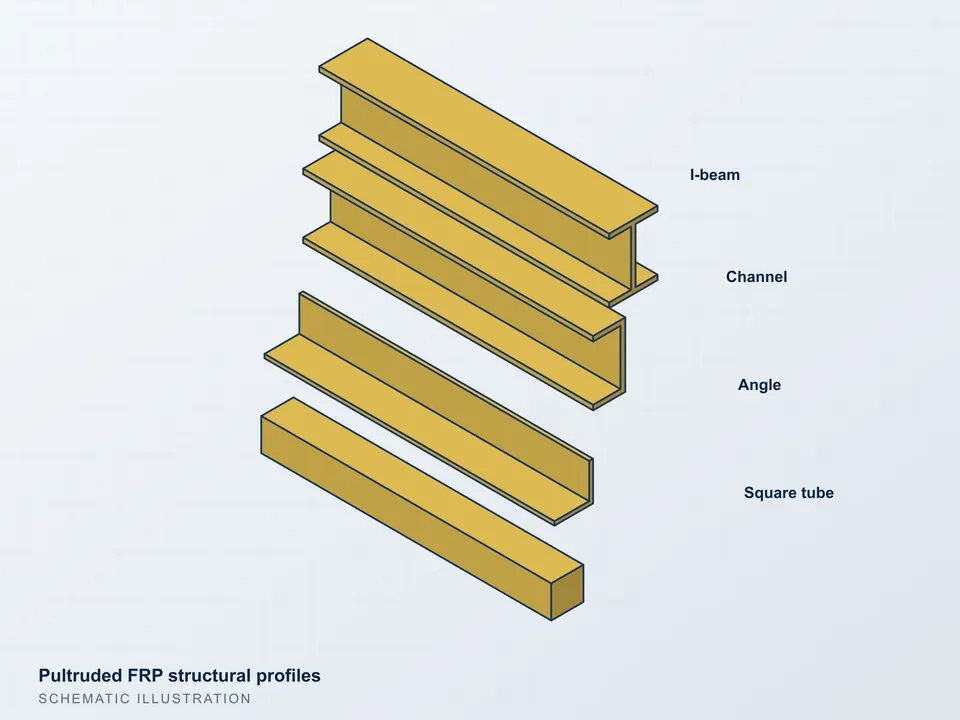

Pultruded glass-fibre side rails and rungs in polyester or vinyl ester resin; fire-retardant, low-smoke options.
Dimensions & formats
Straight lengths typically 3 m; fittings per system catalogue.
Options & customisation
- Colour (grey standard)
- FRP or 316 stainless hardware
- Pre-assembled fittings
Applications
- Chemical and fertiliser plants
- Water and wastewater treatment
- Desalination and coastal substations
- Offshore and marine installations
- Solar and battery plants in aggressive climates
- Tunnels and car parks with de-icing salt exposure
Ordering information
Minimum order
Project-based.
Lead time
Confirmed per quotation.
Packaging
Bundled lengths; fittings boxed and labelled.
Loading & shipping
3 m lengths load efficiently in 20′ or 40′ containers.
Technical documentation
- Load / span tables per systemAvailable on request with your RFQ
- NEMA FG-1 / fire test reportsWhere held by the manufacturer
- Fittings catalogue and installation guideAvailable on request with your RFQ
Frequently asked questions
FRP or stainless steel tray?
FRP is lighter, non-conductive and resistant to chlorides and many chemicals; stainless is stiffer and better at high temperatures. The environment and support spacing decide.
Do FRP trays need earthing?
The tray itself is non-conductive; earthing requirements for cables and supports follow your electrical design.
Are the trays fire-rated?
Fire-retardant, low-smoke formulations are available. We only state test results that the manufacturer can document for the exact system.
