Pultruded FRP Structural Profiles
Pultruded glass-fibre I-beams, wide-flange beams, channels, angles, square and round tubes for platforms, supports and frames in corrosive environments.
- Minimum order
- Per profile and die; confirmed per quotation.
- Lead time
- Confirmed per quotation.
Pultrusion pulls continuous glass fibres through a resin bath and a heated die, producing constant-section profiles with high strength along their length. FRP profiles are used for platform frames, pipe and cable supports, handrail posts, cooling-tower structures and enclosures where steel would corrode or where non-conductive members are required.
Profiles are specified by shape, dimensions, wall thickness and resin. In Europe, pultruded profiles are commonly specified to EN 13706 (grades E17 and E23); ask for the grade and the manufacturer’s section-property tables so your engineer can design with the correct stiffness — FRP is much more flexible than steel, and deflection usually governs.
We supply standard shapes from qualified pultrusion lines, cut to length and packed per structure.
Key specifications

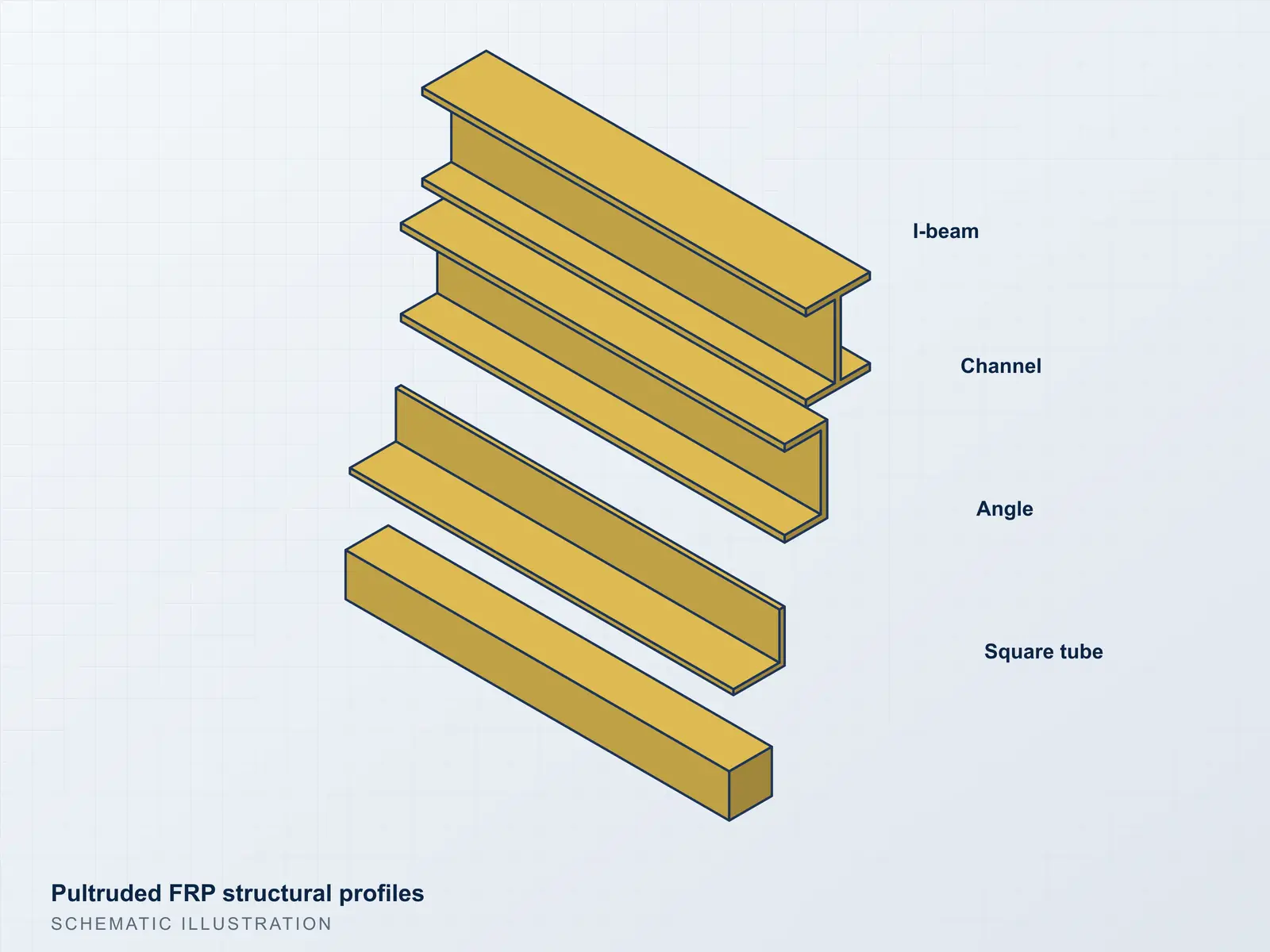

| Shapes | I-beam, wide-flange, channel, angle, square tube, round tube, flat bar, rod |
|---|---|
| Process | Pultrusion (continuous fibre, constant cross-section)Source: en.wikipedia.org |
| Resins | Polyester, vinyl ester; fire-retardant options |
| Specification standard | EN 13706 grades E17 / E23 on request (manufacturer-certified only) |
| Lengths | Cut to length; long lengths limited by container length |
| Design data | Section properties and mechanical data from the manufacturer |
Typical, configurable ranges compiled from published manufacturer data. Final values are confirmed per order in the quotation and supporting test documents.
Materials
E-glass roving and mat in polyester or vinyl ester resin, with surface veil for UV and chemical protection.
Dimensions & formats
Sizes from the manufacturer’s catalogue; custom dies possible at volume.
Options & customisation
- Cut to length and drilled to drawings
- Colour (grey, yellow, green)
- Stainless fasteners and FRP connectors
Applications
- Platform and walkway frames
- Pipe and cable supports
- Handrail posts and toe boards
- Cooling-tower structures
- Enclosures and screens
- Non-conductive supports near electrical equipment
Ordering information
Minimum order
Per profile and die; confirmed per quotation.
Lead time
Confirmed per quotation.
Packaging
Bundled profiles with protective wrap; crated for mixed orders.
Loading & shipping
Long profiles need 40′ containers; lengths over container length are not possible.
Technical documentation
- Section-property tablesAvailable on request with your RFQ
- Mechanical property data / EN 13706 declarationOnly where the manufacturer certifies it
- Chemical-resistance guideAvailable on request with your RFQ
Frequently asked questions
Can FRP profiles replace steel one-to-one?
Not size-for-size. FRP’s modulus is much lower, so deeper sections or shorter spans are needed to control deflection. Your engineer should design with the manufacturer’s data.
How are FRP profiles connected?
With stainless steel bolts, FRP clip angles and connectors, and structural adhesive where specified.
Can you supply drilled, ready-to-assemble kits?
Yes, from fabrication drawings — profiles cut, drilled and labelled per assembly.
