Green Roof & Podium Drainage Boards
Dimpled HDPE boards that drain and store water beneath green-roof substrates and podium landscaping, supplied with or without a bonded filter fleece.
- Minimum order
- From one pallet; project quantities by the container.
- Lead time
- Confirmed per quotation.

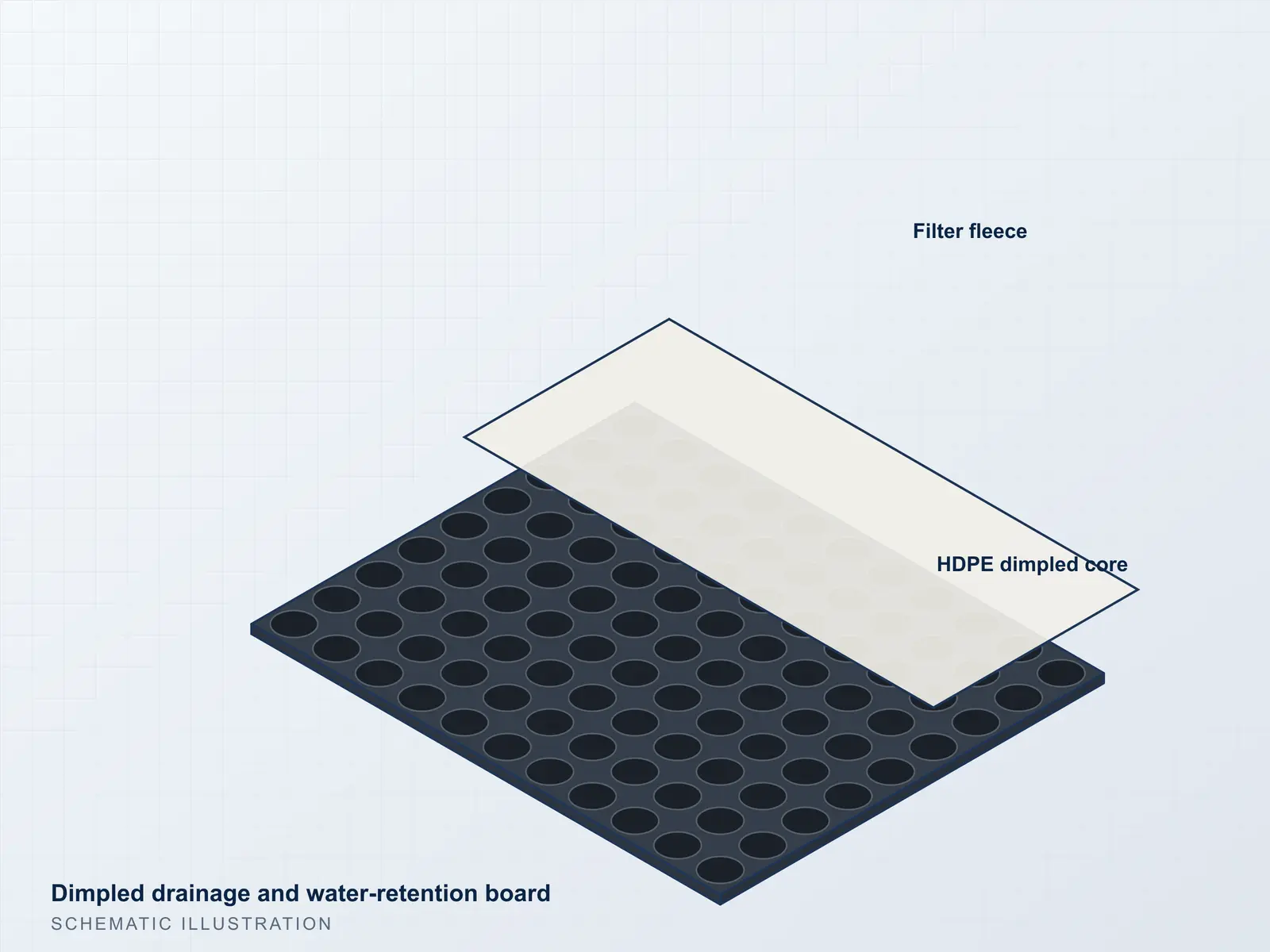

A drainage board sits between the waterproofing (plus protection layer) and the growing medium. Its dimples create a drainage void, and on many boards the cups on the upper face hold a reserve of water for the vegetation. A bonded filter fleece stops fines washing into the void.
Board choice is a balance of dimple height (drainage capacity and water storage), compressive strength (foot traffic, intensive landscaping, podium loads) and roll or sheet format. Published data for 20 mm boards shows roughly 6 l/m² water storage, and compressive strengths in the range of about 115–400 kPa depending on the product.
We supply boards to roofing contractors and green-roof installers; the roof build-up, root barrier and waterproofing system remain the designer’s responsibility.
Key specifications
| Dimple height | 8–50 mm available; 20 mm most common for extensive roofsSource: shivoham.tech |
|---|---|
| Water storage (20 mm board) | ≈ 6 l/m²Source: shivoham.tech |
| Compressive strength | ≈ 115–400 kPa depending on productSource: shivoham.tech |
| Material | HDPE; ≈ 1,000 g/m² typical for 20 mm dimpled sheetSource: shivoham.tech |
| Filter fleece | Optional bonded non-woven geotextileSource: sky-garden.co.uk |
Typical, configurable ranges compiled from published manufacturer data. Final values are confirmed per order in the quotation and supporting test documents.
Materials
HDPE dimpled core; polypropylene or polyester non-woven filter fleece.
Dimensions & formats
Rolls or rigid sheets; widths and lengths per manufacturer, confirmed in the quotation.
Options & customisation
- Board with or without fleece
- Perforated cups for combined drainage/storage
- Private-label roll labels
Applications
- Extensive sedum green roofs
- Intensive roof gardens
- Podium decks and underground car-park roofs
- Planters and roof terraces
- Protection and drainage for basement walls
Ordering information
Minimum order
From one pallet; project quantities by the container.
Lead time
Confirmed per quotation.
Packaging
Rolls on pallets or stacked sheets.
Loading & shipping
Light, voluminous product — often consolidated with other geosynthetics.
Technical documentation
- Product data sheetAvailable on request with your RFQ
- Compressive strength and flow capacity test reportWhere available from the manufacturer
Frequently asked questions
Is a 20 mm board enough?
For many extensive sedum roofs, yes; intensive landscaping and podiums usually need higher boards with greater compressive strength. The roof designer should specify.
Do I need the bonded fleece?
In green roofs, yes in most build-ups — it keeps substrate fines out of the drainage layer.
Can you supply root barrier and substrate?
Root barrier membranes can be sourced; growing substrate is normally sourced locally.
