Non-Penetrating Rooftop Supports
Recycled-rubber base supports with strut channel for pipes, conduit, cable tray and light plant on flat roofs — held by weight, no membrane penetration. H-frame and single-base versions.
- Minimum order
- Mixed pallet trials; container orders.
- Lead time
- Confirmed per quotation.

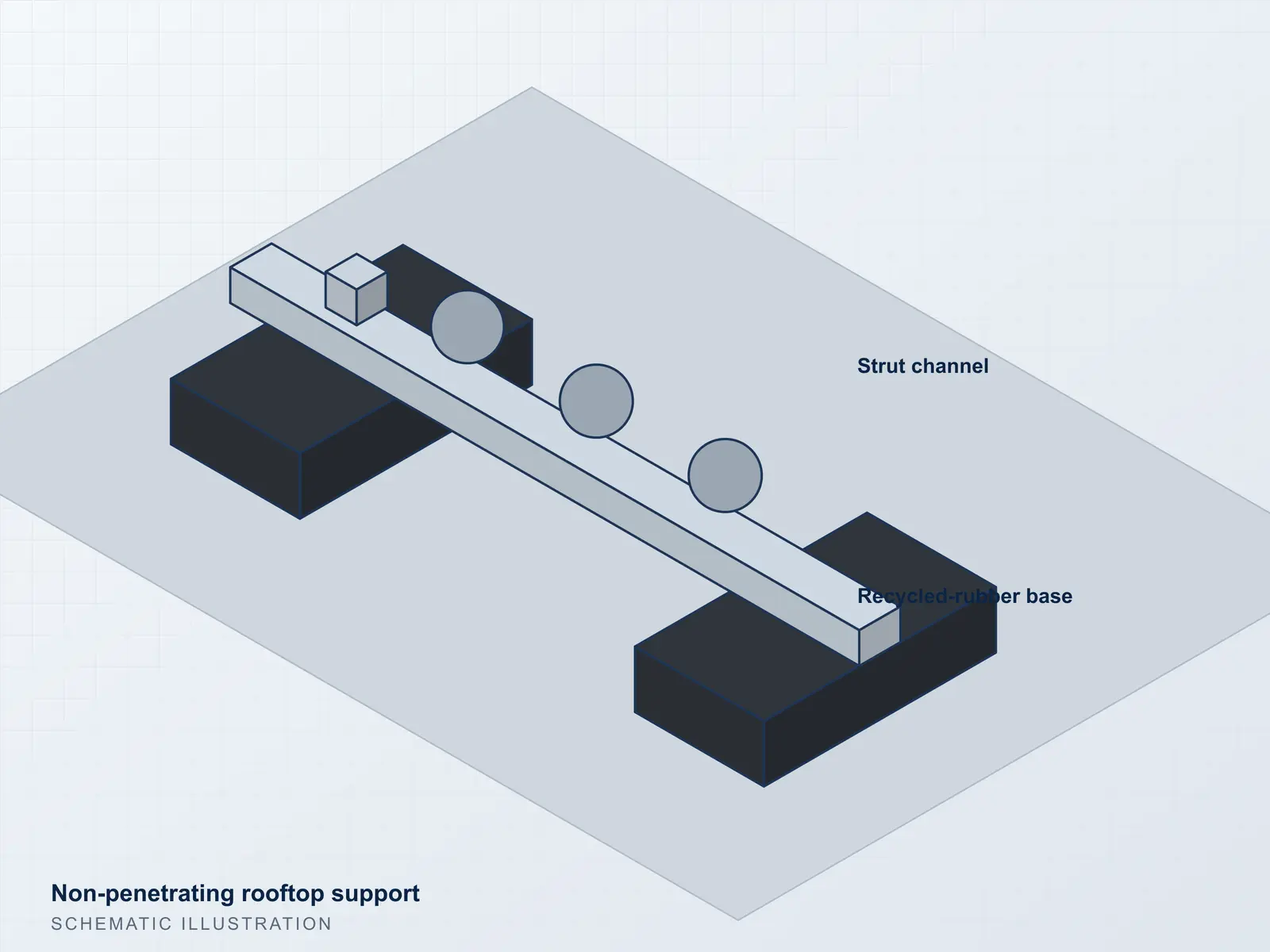

Every hole in a roof membrane is a future leak. Non-penetrating supports sit on the roof and use their own weight and footprint to carry pipework, condensate lines, conduit, cable tray and light equipment frames. Bases moulded from recycled tyre rubber resist UV, rot and water, and accept standard strut channel and pipe clamps.
Designs range from single-base blocks for pipes (published around 750 lb per base for some models) to H-frames that bridge two bases for larger duct and equipment runs. Some manufacturers design bases so the bearing pressure stays below about 2 psi.
We supply bases, strut, pipe clamps and H-frame kits as own-label ranges for mechanical wholesalers.
Key specifications
| Base material | Recycled rubber, UV-resistantSource: eaton.com |
|---|---|
| Configurations | Single base with channel; H-frame (e.g. 350 mm) back-to-back strutSource: directchannel.uk.com |
| Published capacity (example single base) | ≈ 750 lb per base, evenly distributedSource: eaton.com |
| Bearing pressure design (example) | Designed not to exceed ≈ 2 psi at each baseSource: rooftopsupportsystems.com |
| Compatibility | Standard strut channel and pipe clampsSource: directchannel.uk.com |
Typical, configurable ranges compiled from published manufacturer data. Final values are confirmed per order in the quotation and supporting test documents.
Materials
Recycled rubber bases; pre-galvanised or hot-dip galvanised strut; zinc or stainless fixings.
Dimensions & formats
Per model; H-frame widths and heights configurable.
Options & customisation
- Own-label packaging
- Kit configurations per project
Applications
- Refrigerant and condensate pipework
- Conduit and cable tray on roofs
- Solar and HVAC cabling
- Light plant and walkway supports
- Retrofit on sensitive membranes
Ordering information
Minimum order
Mixed pallet trials; container orders.
Lead time
Confirmed per quotation.
Packaging
Bases palletised; strut bundled.
Loading & shipping
Heavy — weight-limited containers.
Galvanised strut into the EU falls under CBAM; rubber bases do not.
Technical documentation
- Load data per base/frameFrom manufacturer test data
- Membrane compatibility statementConfirm with the roofing manufacturer
Frequently asked questions
Will rubber bases damage my membrane?
They are designed for membranes, but compatibility varies (e.g. some PVC membranes). Confirm with the roofing manufacturer and use a slip sheet where required.
How far apart should supports be?
Follow the pipe or tray manufacturer’s support spacing and the design loads.
Do they need fixing to the roof?
No — they are held by weight and friction; wind-exposed sites may need additional ballast per design.
