Permeable Gravel & Grass Grids (HDPE)
Interlocking HDPE grids, typically 500 × 500 × 40 mm, that hold gravel or grass in place on driveways, paths and overflow parking while keeping the surface permeable.
- Minimum order
- Sampling from one carton; trade orders by the pallet; best landed cost by the container.
- Lead time
- Confirmed per quotation.

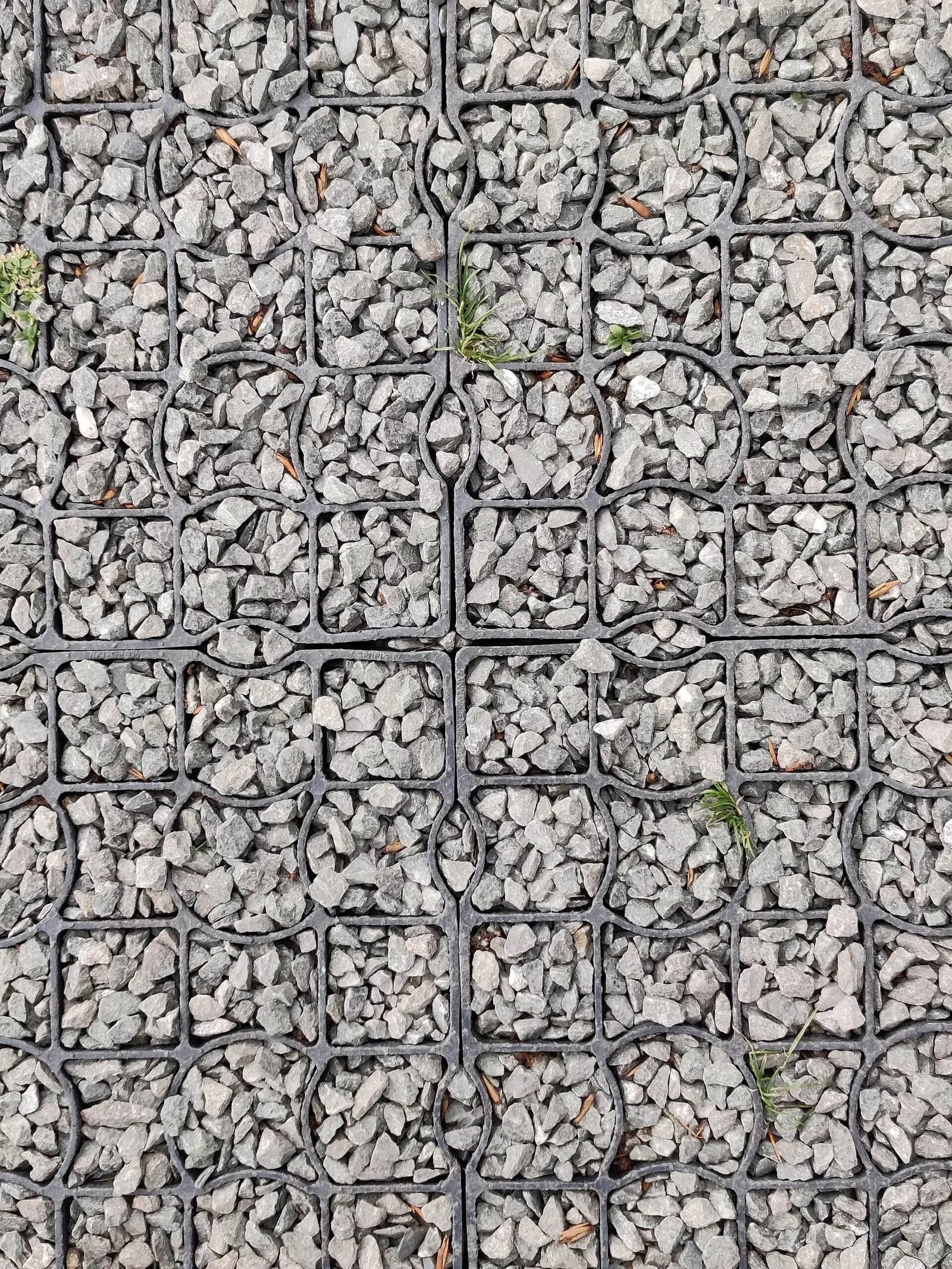

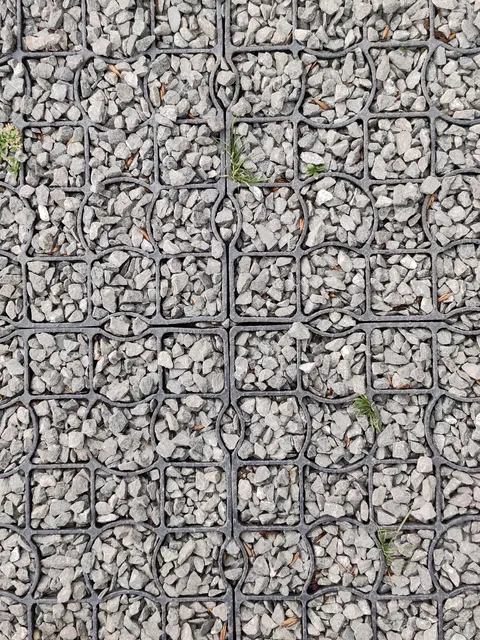

Plastic gravel grids stop aggregate migrating and rutting, and grass grids protect turf on occasionally trafficked areas. Both keep the surface permeable, which is why they appear in SuDS schemes for parking bays, paths and access routes.
The 500 × 500 × 40 mm cellular panel with base spikes is the format most UK merchants stock. Published load figures for filled grids range from roughly 320 to 500 tonnes per m² depending on design — always ask for the figure of the exact product, since panel geometry, wall thickness and material grade differ.
We supply black or green panels in recycled or virgin HDPE, loose or with a bonded geotextile backing, and can pack for retail (small packs) or trade (pallets).
Key specifications
| Panel format | 500 × 500 × 40 mm (common); base spikes ≈ 25 mmSource: sure-green.com |
|---|---|
| Published load capacity (filled) | ≈ 320–500 t/m² depending on productExamples: 320 (ToughGrid), 350 (PP40), 500 (IBRAN-X40, EcoGrid E40)Source: ibran.com |
| Material | HDPE, often 100% recycledSource: sure-green.com |
| Infill | Angular gravel, soil/grass, chippingsSource: sure-green.com |
| Connection | Interlocking clips; cut with standard toolsSource: ecogrid.co.uk |
| Options | Black / green; with or without bonded geotextile |
Typical, configurable ranges compiled from published manufacturer data. Final values are confirmed per order in the quotation and supporting test documents.
Materials
High-density polyethylene; UV-stabilised grades for exposed grass installations.
Dimensions & formats
500 × 500 × 40 mm panels with base spikes; other heights (e.g. 30 or 50 mm) on request.
Options & customisation
- Merchant private label and retail packaging
- Colour (black, green; others subject to MOQ)
- Geotextile-backed version
Applications
- Gravel driveways and forecourts
- Overflow and grasscrete-style parking

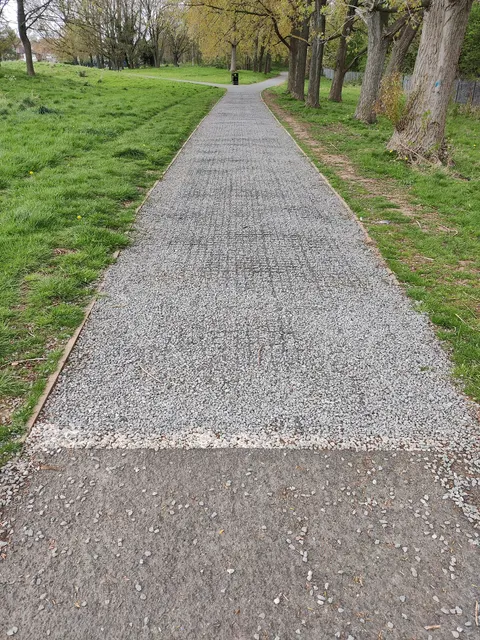

- Footpaths and cycle paths
- Shed and greenhouse bases
- Fire-access routes (to project specification)
- Caravan and camping pitches
Ordering information
Minimum order
Sampling from one carton; trade orders by the pallet; best landed cost by the container.
Lead time
Confirmed per quotation.
Packaging
Nested panels on pallets; retail packs of multiple panels on request.
Loading & shipping
Panels nest tightly — mixed loads with modules or geocells are common.
Retail prices for gravel grids are highly visible online. We focus on merchant and contractor volumes where container pricing and private label matter.
Technical documentation
- Product data sheetAvailable on request with your RFQ
- Load test data (manufacturer)Confirmed per product
- Installation guideAvailable on request with your RFQ
Frequently asked questions
What sub-base do gravel grids need?
A compacted, free-draining sub-base designed for the expected traffic, with a thin laying course. The grid distributes load and holds gravel; it does not replace the sub-base.
Gravel grid or grass grid?
Use gravel infill for regular vehicle use and grass infill where traffic is occasional and a green surface is wanted.
Can I get my own brand on the packs?
Yes. Private-label cartons and inserts are possible for merchant orders; MOQs are confirmed per quotation.
