Anti-Vibration Mounting Feet
Recycled-rubber mounting feet with integrated strut or aluminium channel for heat pumps and condensing units. 400/450/600 mm lengths, supplied in pairs with fixings; published loads up to 450 kg per foot.
- Minimum order
- Mixed trial pallet; container orders across SKUs.
- Lead time
- Confirmed per quotation.
Rubber feet lift the outdoor unit off the ground or roof, isolate vibration from the structure and let condensate drain away. Because they sit on the surface without drilling, they are also the standard way to mount units on flat roofs without penetrating the membrane.

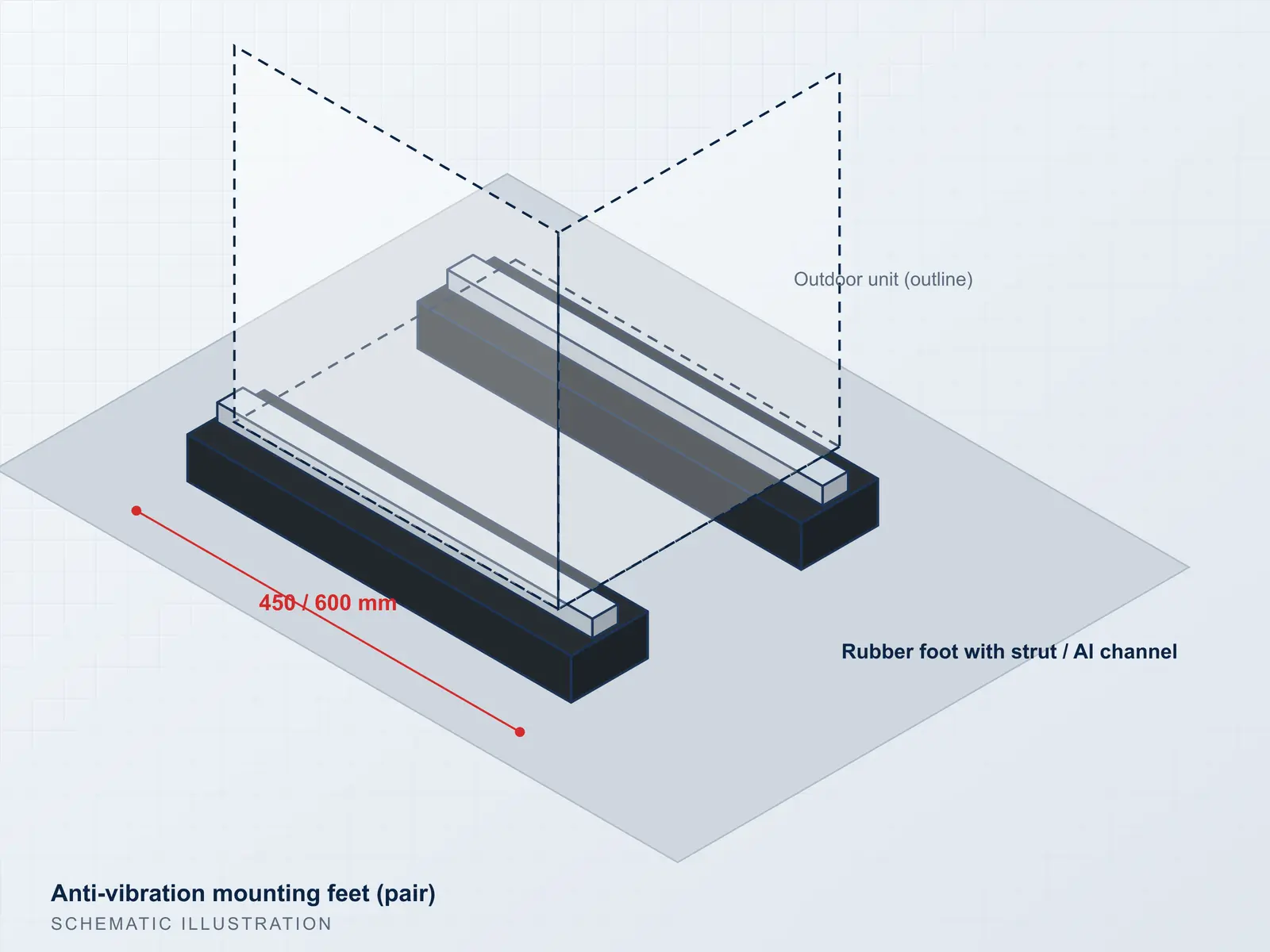

The typical UK wholesale product is a pair of recycled-rubber feet (400, 450 or 600 mm) with a channel on top that accepts M8/M10 bolts or spring nuts, supplied with a fixing kit. Load ratings vary with rubber compound and length — one widely sold design is published at 450 kg per foot.
We supply standard lengths in own-label packaging, with or without fixings, and can add heights (e.g. 95 mm or taller) for snow clearance and drainage.
Key specifications
| Lengths | 400, 450, 600 mm (common)Source: automatedenvironmentalsystems.co.uk |
|---|---|
| Example dimensions | 600 × 180 × 95 mm (L × W × H)Source: mlcp-direct.co.uk |
| Published load (example) | Up to 450 kg per footSource: automatedenvironmentalsystems.co.uk |
| Construction | Recycled rubber with aluminium or strut channel; Unistrut-compatibleSource: automatedenvironmentalsystems.co.uk |
| Supply | Pairs with bolts, washers and channel nutsSource: automatedenvironmentalsystems.co.uk |
Typical, configurable ranges compiled from published manufacturer data. Final values are confirmed per order in the quotation and supporting test documents.
Materials
Recycled rubber base; aluminium or pre-galvanised steel channel; zinc-plated or stainless fixings.
Dimensions & formats
See specifications; custom lengths at volume.
Options & customisation
- Own-label cartons and inserts
- Fixing kit content
- Stainless fixings for coastal areas
Applications
- Air-source heat pumps on slabs or paving
- Split-system condensing units

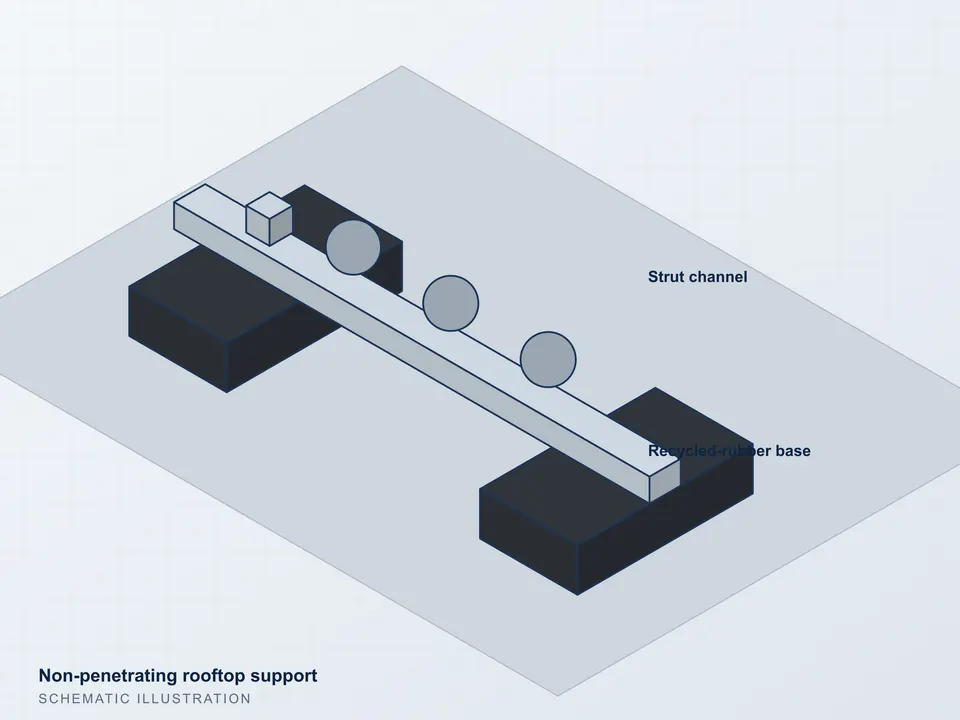

- Flat-roof installations without penetration
- Chillers and small packaged units
- Commercial rooftop plant (light)
Ordering information
Minimum order
Mixed trial pallet; container orders across SKUs.
Lead time
Confirmed per quotation.
Packaging
Pairs in printed cartons; master cartons on pallets.
Loading & shipping
Heavy but compact — plan container weight, not volume.
Technical documentation
- Product data sheet with load ratingFrom the manufacturer’s test data
- Installation instructions (private-label ready)Available on request with your RFQ
Frequently asked questions
Can I use feet on a flat roof?
Yes, that is a main use; check membrane compatibility and add a protection pad where the roofing manufacturer requires it.
Which length?
Match the unit’s foot spacing; 450 mm suits many domestic units, 600 mm larger ones.
Do rubber feet reduce noise?
They reduce structure-borne vibration; airborne noise depends on the unit and its siting.
