Wire Mesh Cable Tray (Basket Tray)
Welded-wire basket tray for overhead and under-floor cable routing in data centres and buildings. Widths about 50–600 mm (up to 800 mm), heights about 30–150 mm, lengths 2–3 m; IEC 61537 test methods.
- Minimum order
- Per finish and size; confirmed per quotation.
- Lead time
- Confirmed per quotation.
Wire mesh tray is the default for low-voltage and data cabling above racks and under raised floors: it is light, cut and bent on site with bolt cutters, keeps cables visible and allows air to pass.
IEC 61537 does not fix tray sizes; it defines how load and deflection are tested, so each manufacturer publishes its own safe working loads per span. When comparing offers, compare the tested load at your support spacing, wire diameter and finish — not just width and height.
We supply electro-zinc, hot-dip galvanised and stainless finishes, plus splices, supports and brackets. For data halls, black powder-coated tray is common above racks.
Key specifications
| Widths | ≈ 50–600 mm common (up to 800 mm)Source: xmqj.com |
|---|---|
| Heights | ≈ 30–150 mmSource: xmqj.com |
| Section lengths | 2 m, 3 m (6 m in some ranges)Source: xmqj.com |
| Test standard | IEC 61537 (load/deflection and test methods — not sizes)Source: nordicwiretray.com |
| Finishes | Electro-zinc, hot-dip galvanised, stainless steel, powder-coated |
Typical, configurable ranges compiled from published manufacturer data. Final values are confirmed per order in the quotation and supporting test documents.
Materials
Low-carbon steel wire (or stainless), welded; surface finish per environment.
Dimensions & formats
Width × height per range; standard lengths 2–3 m.
Options & customisation
- Finish and colour
- Pre-cut fittings
- Supports and brackets kit
Applications
- Overhead cabling above racks
- Under raised floors
- Commercial buildings and ceilings
- Industrial control cabling
- Telecom rooms
Ordering information
Minimum order
Per finish and size; confirmed per quotation.
Lead time
Confirmed per quotation.

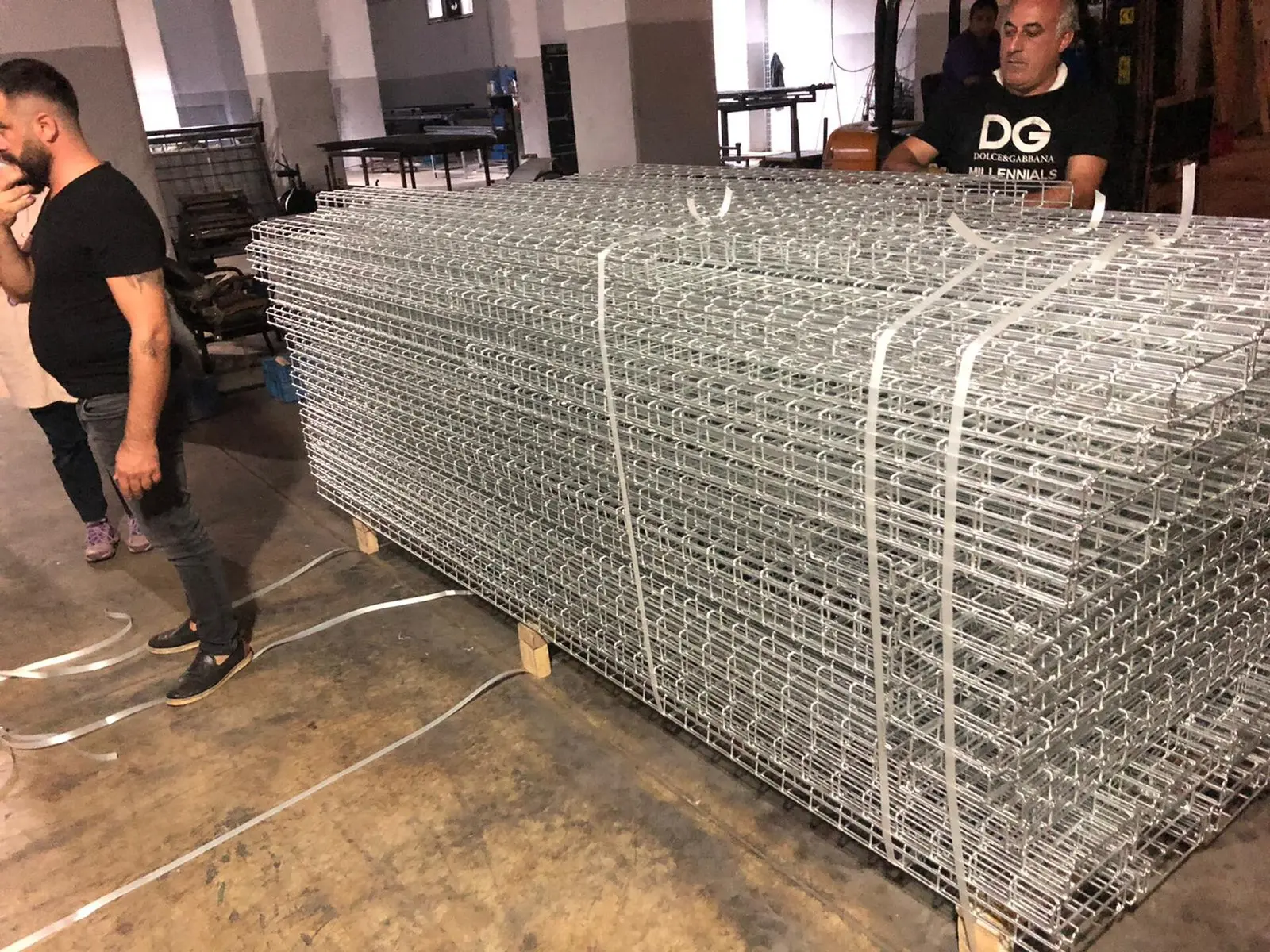

Packaging
Bundled lengths on pallets.
Loading & shipping
Medium density; loading plan per order.
Steel products into the EU are in CBAM scope and into the USA face additional steel measures — GCC, SEA, India and the UK are the primary markets for this product.
Technical documentation
- Load/span data per IEC 61537 testsWhere the manufacturer holds the test report
- Finish specification (zinc thickness)Available on request with your RFQ
Frequently asked questions
Which finish do I need?
Electro-zinc indoors in dry areas; hot-dip galvanised for humid or outdoor areas; stainless for corrosive or hygienic environments.
Is IEC 61537 a size standard?
No. It defines tests for load, deflection and other properties; sizes are manufacturer ranges.
Can we get black tray for the data hall?
Yes, powder-coated black is available, subject to MOQ.
