Adjustable Paving Pedestals
Height-adjustable pedestals that support paving slabs and decking above roofs, podiums and terraces — with spacer tabs for even joints and slope correctors for falls. Plastic and metal ranges, heights from a few millimetres to several hundred.
- Minimum order
- Trial pallet per height band; project quantities by the pallet or container.
- Lead time
- Confirmed per quotation.
Raised paving on pedestals keeps the finished surface level while water drains freely underneath — the standard build-up for roof terraces, podium decks, balconies and plant-room walkways over waterproofing. It pairs naturally with drainage boards and green-roof layers, which is why we supply it to the same roofing and landscape contractors.

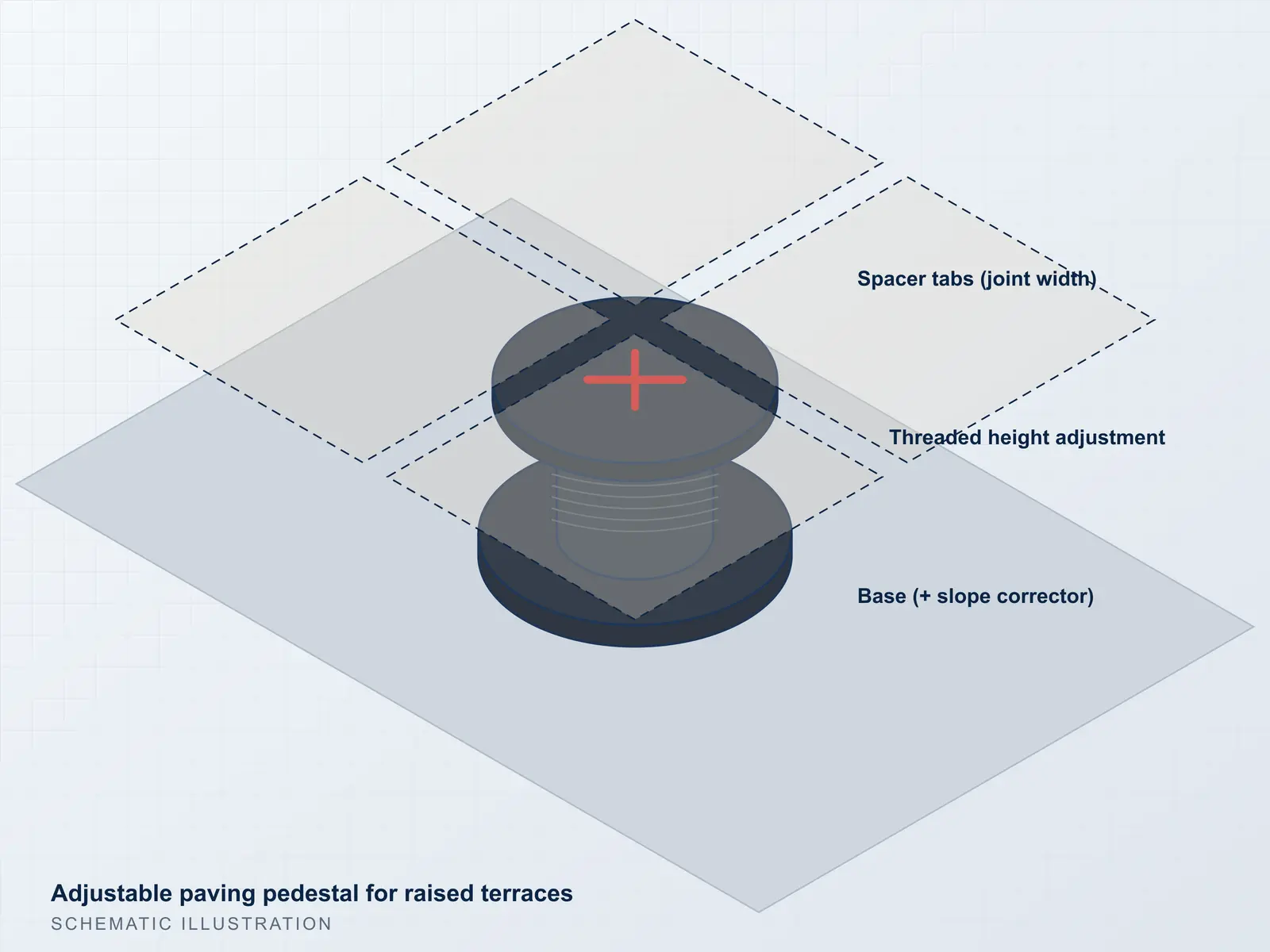

A pedestal system is specified by height range (fixed shims for a few millimetres, threaded pedestals and extension collars for greater heights), head type (spacer tabs that set a consistent joint, typically 3–8 mm), slope correction (self-levelling heads or correctors for falls, commonly up to about 5° or 7–8 %), and load per pedestal for the paver size and use.
We supply complete kits — pedestals, extension rings, shims, slope correctors, rubber pads and perimeter/edge restraints — so the whole terrace can be ordered from one bill of quantities. Slope correctors and spacer clips are supplied as part of the kit rather than as separate items.
Key specifications
| Height range (system) | From ≈ 25 mm to ≈ 500 mm with adjustable heads and extensions; product-dependentLow shims for thin build-upsSource: envirobuild.com |
|---|---|
| Spacer tabs (joint width) | Typically 3, 4, 6 or 8 mm; snap-off for walls and edgesSource: envirobuild.com |
| Slope correction | Self-levelling heads/correctors, commonly up to ≈ 5°; DE ranges up to 7–8 %Source: holzmarkt-riegelsberger.de |
| Load per pedestal (example) | Up to ≈ 1,000 kg published for a metal slope-correcting model; plastic ranges vary with heightUse the tested value of the exact model and heightSource: commercial.envirobuild.com |
| Materials | Engineering plastics (commonly polypropylene) or metal for high loads/heights |
| Accessories | Extension collars, shims, rubber pads, perimeter restraints |
Typical, configurable ranges compiled from published manufacturer data. Final values are confirmed per order in the quotation and supporting test documents.
Materials
Polypropylene or other engineering plastics for standard ranges; galvanised or stainless steel/aluminium for high loads or tall builds. Rubber pads for sound isolation and membrane protection.
Dimensions & formats
Base diameters and head sizes per range; heights built from adjustable pedestal + extension collars; paver sizes typically 600 × 600 mm and similar formats.
Options & customisation
- Kits packed per project zone (by height band)
- Private-label packaging for merchants
- Tab widths and head types to paver/decking system
Applications
- Roof terraces over waterproofing
- Podium decks and plazas
- Balconies (subject to fire rules)
- Plant-room walkways on flat roofs
- Raised decking on timber or composite joists
- Water features and service voids
Ordering information
Minimum order
Trial pallet per height band; project quantities by the pallet or container.
Lead time
Confirmed per quotation.
Packaging
Nested pedestals in cartons on pallets; accessories bagged per kit.
Loading & shipping
Light but voluminous — mixes well with drainage boards and geosynthetics.
Check national fire rules before specifying combustible materials on balconies and terraces of residential buildings (for example UK restrictions on combustible materials in external walls and balconies of relevant buildings). Metal pedestals are available where non-combustible supports are required.
Technical documentation
- Height and load table per model (manufacturer)Available on request with your RFQ
- Slope-corrector and spacer compatibility chartAvailable on request with your RFQ
- Fire classification / material dataWhere held for the exact product
Frequently asked questions
How many pedestals per paver?
Usually one at each corner shared between four pavers, plus intermediate supports for large or thin pavers; follow the paver manufacturer’s span guidance.
Can pedestals sit directly on a waterproofing membrane?
Often yes with a protection or rubber pad, but confirm compatibility with the membrane manufacturer.
Do you sell slope correctors separately?
They are supplied as part of pedestal kits so heights, heads and correctors match; replacement packs can be added to an order.
