Moulded FRP Grating (GRP Open Mesh)
One-piece moulded FRP/GRP grating with 38 × 38 mm mesh, most often in 3660 × 1220 mm panels and 25–50 mm depths. Gritted or concave anti-slip surface, polyester or vinyl ester resin.
- Minimum order
- Sample piece on request; project orders from a few panels by LCL, full panels by the container.
- Lead time
- Stock formats vs. moulded-to-order are confirmed in each quotation.

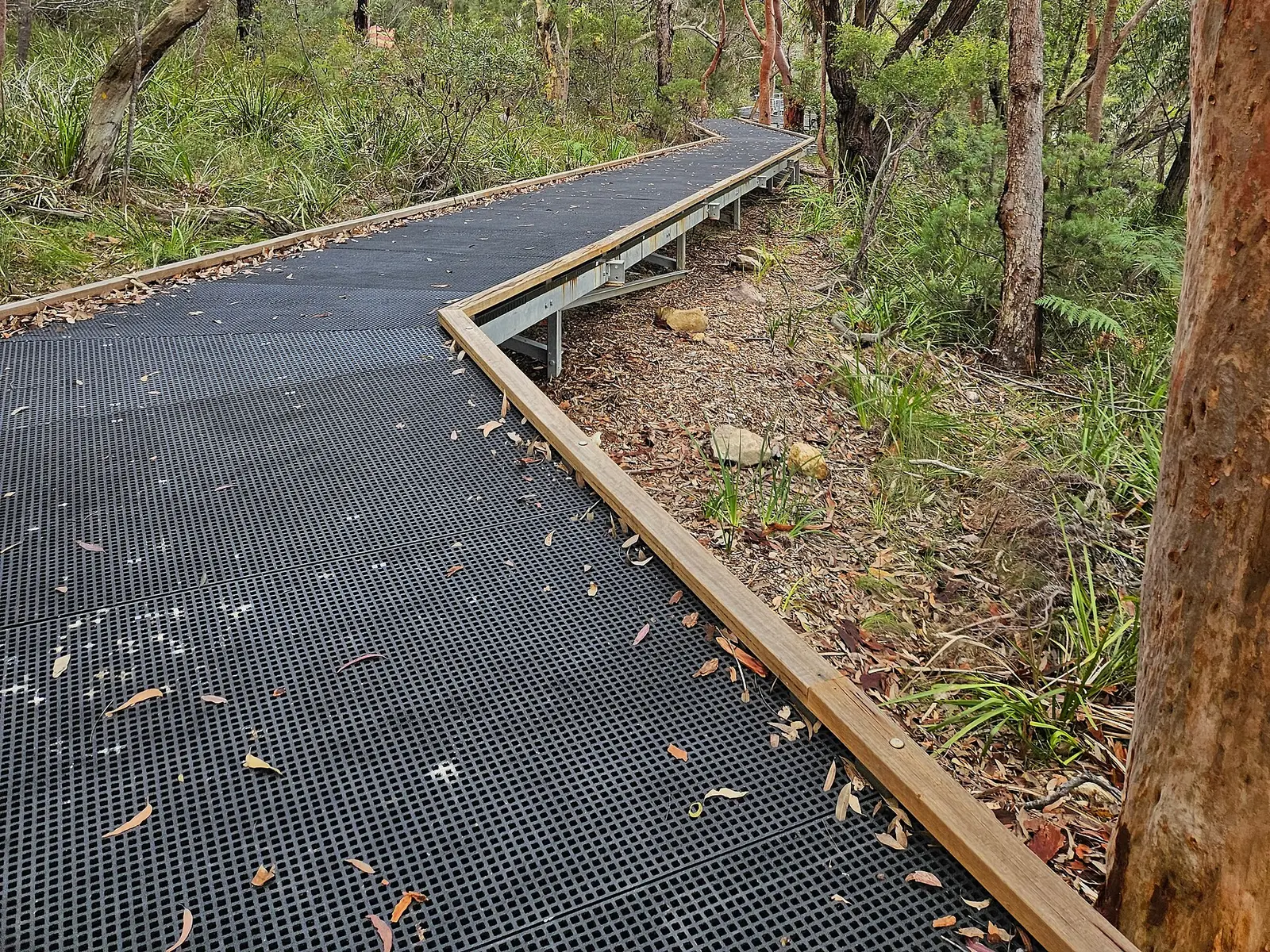

Moulded grating is the workhorse FRP product: walkways, platforms, trench covers, bund floors and stair landings in plants where steel corrodes. The 3660 × 1220 mm panel with 38 × 38 mm mesh is the most widely used configuration worldwide, and the same mesh is available in several depths so one system covers light pedestrian decks and heavier maintenance areas.
Specifying it correctly: choose depth from the manufacturer’s load/deflection table for your clear span and load (uniform or concentrated), then select resin for the chemical exposure and a surface for the slip risk. Deflection — not breaking strength — usually governs.
We supply standard panels, mini-mesh versions for small-object and heel protection, and panels cut to your drawings with edge sealing.
Key specifications
| Standard panel | 3660 × 1220 mm (most common); other panel sizes availableSource: preetgrating.com |
|---|---|
| Mesh | 38 × 38 mm (most common); mini-mesh on requestSource: preetgrating.com |
| Depths | 25, 30, 38, 50 mm (series-dependent)Source: fibergrate.com |
| Panel weight (example) | ≈ 85 kg for 38 mm, 3660 × 1220 mmSource: engineered-composites.co.uk |
| Resin systems | Orthophthalic, isophthalic, vinyl ester; fire-retardant formulationsSource: en.wikipedia.org |
| Surface | Quartz-gritted, concave or smoothSource: engineered-composites.co.uk |
| Load data | Per manufacturer load/deflection tables — supplied with each quoteSource: fibergrate.com |
Typical, configurable ranges compiled from published manufacturer data. Final values are confirmed per order in the quotation and supporting test documents.
Materials
Continuous glass-fibre roving in thermoset resin (polyester or vinyl ester), UV inhibitors, optional fire-retardant additives and quartz grit.
Dimensions & formats
Standard panels 3660 × 1220 mm; cut-to-size panels to drawings. Clips (M, C or saddle type) in stainless steel supplied to suit.
Options & customisation
- Colours: yellow, grey, green (others by MOQ)
- Cutting, edge sealing and area labelling
- Stainless 316 fixing clips
Applications

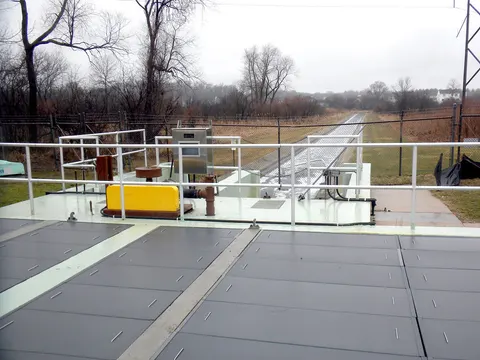

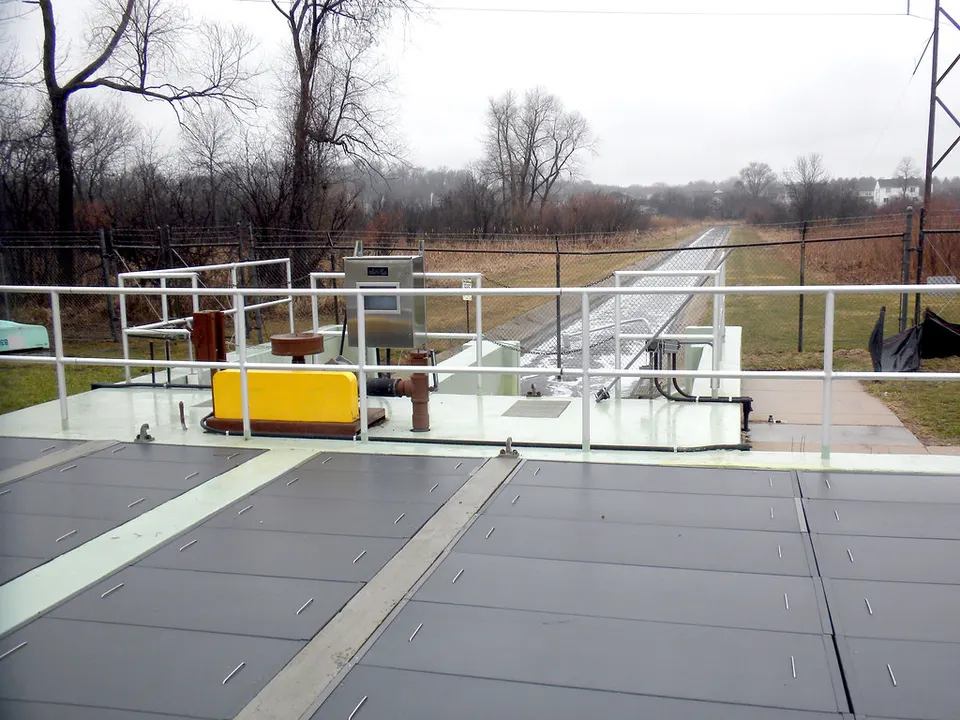

- Walkways and platforms in water and wastewater plants
- Chemical bunds and process areas
- Cooling towers and desalination intakes
- Trench and pit covers (pedestrian)
- Offshore, marine and port structures
- Electrical areas needing non-conductive flooring
Ordering information
Minimum order
Sample piece on request; project orders from a few panels by LCL, full panels by the container.
Lead time
Stock formats vs. moulded-to-order are confirmed in each quotation.
Packaging
Panels on wooden pallets with corner protection; cut pieces labelled by area.
Loading & shipping
Container plan provided; panels are light relative to volume.
US: Chinese steel grating is subject to AD/CVD orders; FRP grating is a separate product, but classification must be confirmed before shipment.
Technical documentation
- Load / deflection tables for the quoted depth and meshAvailable on request with your RFQ
- Resin and chemical-resistance guideAvailable on request with your RFQ
- Fire test reportOnly where held for the exact product
- Dimensional inspection report before shipmentAvailable on request with your RFQ
Frequently asked questions
Which depth do I need for a 1 m span?
Use the load/deflection table: pick the depth that keeps deflection within the limit set by your specification under the design load. Send span and load and we will quote the matching depth.
Is moulded grating slip resistant?
Gritted surfaces give high slip resistance in wet and oily conditions; concave surfaces are a compromise between grip and cleanability.
How are panels fixed?
With stainless steel clips to the support steel or FRP profiles. Clip type depends on the support flange.
